| Price | $1.50 |
|---|---|
| Category | Others |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

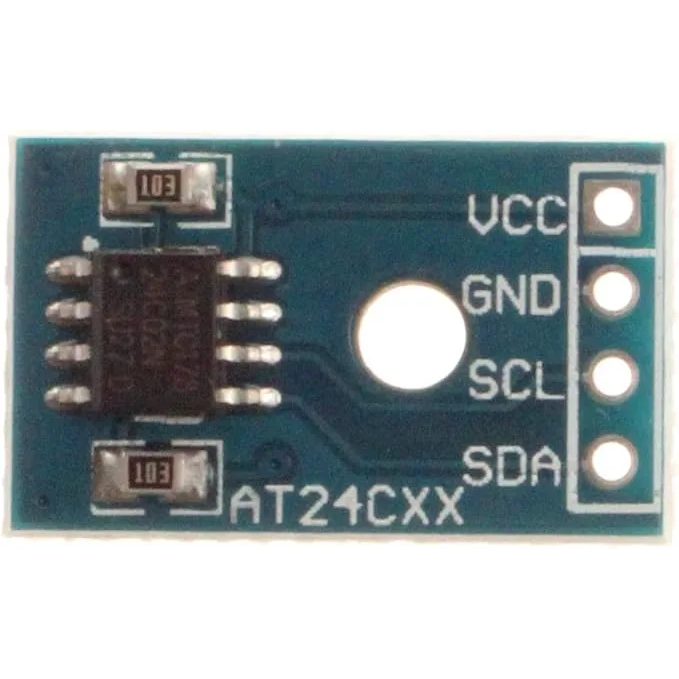

A breakout for the Atmel AT24C02 serial EEPROM - 2 kilobits, which is 256 bytes, not 2 kilobytes. It hangs off the I2C bus on four pins and keeps whatever you write to it with the power off, which makes it the easy place to park settings, a run-hours counter or sensor calibration. Rated for a million write cycles and 100 years of data retention, with 10 kOhm pull-ups already fitted on SDA and SCL.
Key features
- AT24C02: 2 Kbit = 256 bytes, organised 256 x 8
- Two-wire I2C, up to 400 kHz at 2.7-5.5V
- 8-byte page writes, 5 ms write cycle
- 1,000,000 write cycles, 100-year retention
- 10 kOhm I2C pull-ups on board
- Four pins: VCC, GND, SCL, SDA
Details
Specifications
| Chipset | Atmel AT24C02 (AT24C02N) |
|---|---|
| Capacity | 2 Kbit (256 bytes), 256 x 8 |
| Interface | I2C (two-wire) |
| Operating voltage | 2.7V to 5.5V |
| Bus speed | 400 kHz (100 kHz at 1.8V) |
| Page size | 8 bytes |
| Write cycle | 5 ms (self-timed) |
| Endurance | 1,000,000 write cycles |
| Data retention | 100 years |
| Pins | VCC, GND, SCL, SDA |
