| Price | $22 |
|---|---|
| Category | Microcontrollers |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

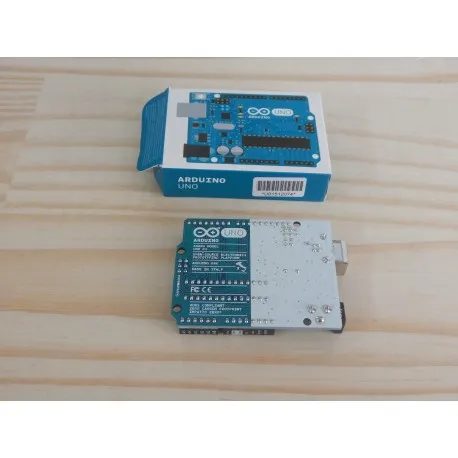

An Uno Rev3 made by Arduino themselves rather than a budget copy. Same ATmega328P at 16 MHz, 14 digital I/O with 6 PWM and 6 analog inputs, but with the ATmega16U2 USB interface the official design uses - so it enumerates without hunting for a CH340 driver - and the build quality and support that go with a genuine board. Worth the difference for teaching sets, resale, and anything you would rather not debug twice.
Key features
- Manufactured by Arduino - not a clone
- ATmega16U2 USB interface, no third-party driver needed
- 14 digital I/O (6 PWM) and 6 analog inputs, 10-bit ADC
- 32 KB flash, 2 KB SRAM, 1 KB EEPROM at 16 MHz
- 5V logic, 7-12V barrel jack or USB-B power
- Fits the full range of Uno shields
Details
Specifications
| Model | Arduino Uno Rev3 (genuine) |
|---|---|
| Microcontroller | ATmega328P |
| USB interface | ATmega16U2 |
| Clock speed | 16 MHz |
| Flash memory | 32 KB (0.5 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Operating voltage | 5V |
| Input voltage | 7-12V recommended (6-20V limit) |
| Digital I/O | 14 (6 PWM) |
| Analog inputs | 6 |
| ADC resolution | 10-bit |
| Current per I/O pin | 20 mA |
| USB connector | USB Type-B |
| Dimensions | 68.6 x 53.4 mm |
| Weight | 25 g |
