| Price | $2 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

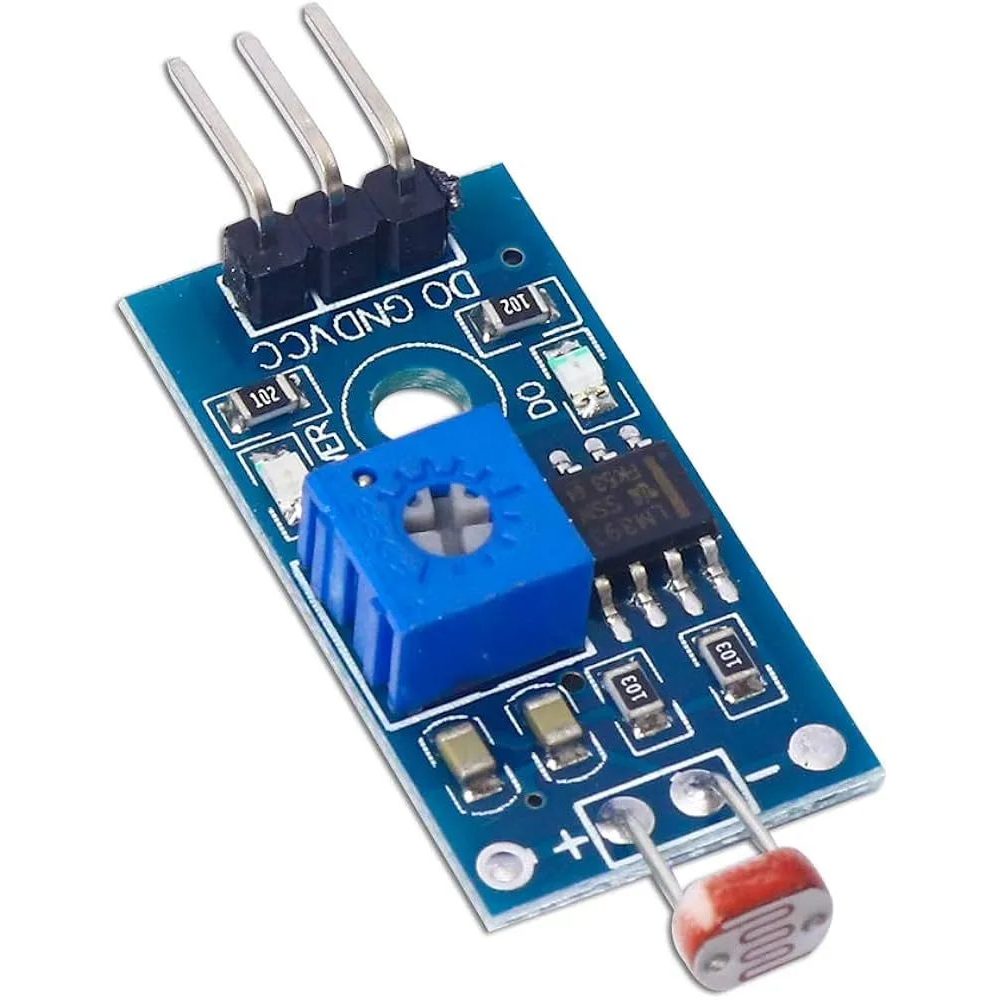

A light-dependent resistor wired to an LM393 comparator, so instead of a raw brightness reading you get a clean on/off signal that flips when the light crosses a level you set with the blue trimmer. Note the three pins - DO, GND, VCC: this is the digital-threshold version with no analog output, so it is for dusk-to-dawn switching, break-beam detection and light-triggered alarms rather than for measuring how bright a room is.
Key features
- Three pins only: DO, GND, VCC - digital output
- Threshold set with the onboard trimmer
- LM393 comparator with an LDR sensing element
- Power and output LEDs make setting up easy
- For dusk-to-dawn switching and light-triggered alarms
- No analog output - use a bare LDR if you need levels
Details
Specifications
| Sensing element | Photoresistor (LDR) |
|---|---|
| Comparator | LM393 |
| Output | Digital threshold (DO), adjustable |
| Operating voltage | 3.3-5V DC (typ.) |
| Pins | DO, GND, VCC |
| Indicators | Power LED and output LED |
