| Price | $9 |
|---|---|
| Category | Microcontrollers |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

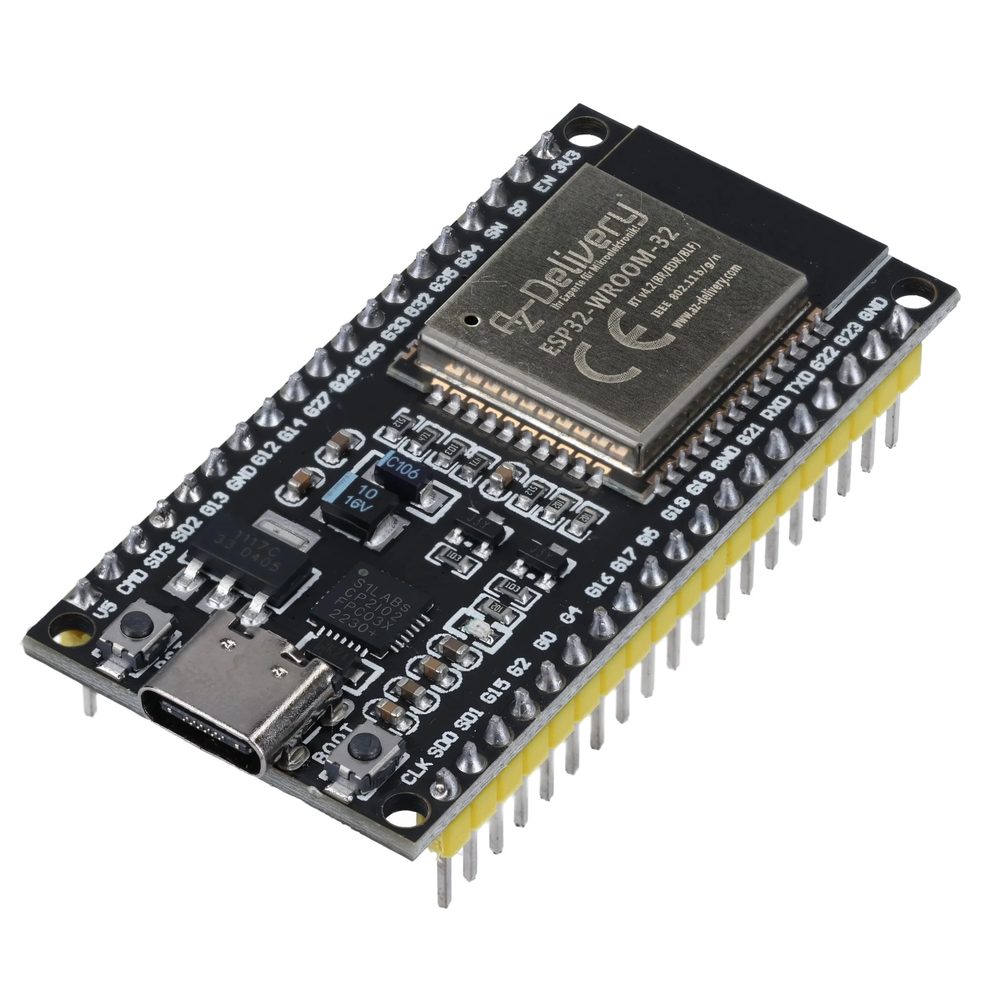

The workhorse ESP32 development board: an ESP32-WROOM-32 module carrying a dual-core Xtensa LX6 at up to 240 MHz, 520 KB of SRAM and 4 MB of flash, with Wi-Fi 802.11 b/g/n and Bluetooth 4.2 including BLE. The 38-pin DevKit layout brings out around 34 GPIO with 18 channels of 12-bit ADC, two DACs, ten capacitive touch inputs and 16 PWM channels. Deep-sleep modes drop it into microamps, which is why it turns up in everything from smart-home gadgets to battery sensor nodes.
Key features
- Dual-core Xtensa LX6 up to 240 MHz, 520 KB SRAM, 4 MB flash
- Wi-Fi 802.11 b/g/n plus Bluetooth 4.2 Classic and BLE
- ~34 GPIO on a 38-pin DevKit board
- 18 channels of 12-bit ADC, 2 DACs, 10 touch inputs, 16 PWM channels
- Deep-sleep modes for battery-powered builds
- 3.3V logic - it is not 5V tolerant
- Arduino IDE, ESP-IDF and MicroPython all supported
Details
Specifications
| Model | ESP32-WROOM-32 DevKit, 38-pin |
|---|---|
| Chipset | ESP32-D0WDQ6, dual-core Xtensa LX6 |
| Clock speed | Up to 240 MHz (80/160/240 MHz) |
| Flash memory | 4 MB SPI flash |
| SRAM | 520 KB (plus 8 KB RTC SRAM) |
| Wireless | Wi-Fi 802.11 b/g/n up to 150 Mbps; Bluetooth 4.2 BR/EDR + LE |
| Antenna | On-board PCB antenna |
| Digital I/O | Up to 34 usable GPIO |
| Analog inputs | 18 ADC channels |
| ADC resolution | 12-bit SAR |
| PWM channels | 16 (LEDC) |
| Module supply | 3.0-3.6V |
| Logic voltage | 3.3V (not 5V tolerant) |
| Power input | 5V via USB, or 5V/3.3V pins |
| USB connector | USB-C with CP2102 bridge (board pictured) |
| Module size | 18 x 25.5 x 3.1 mm |
| Board size | approx. 56 x 28 mm |
