| Price | $12 |
|---|---|
| Category | Screens |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

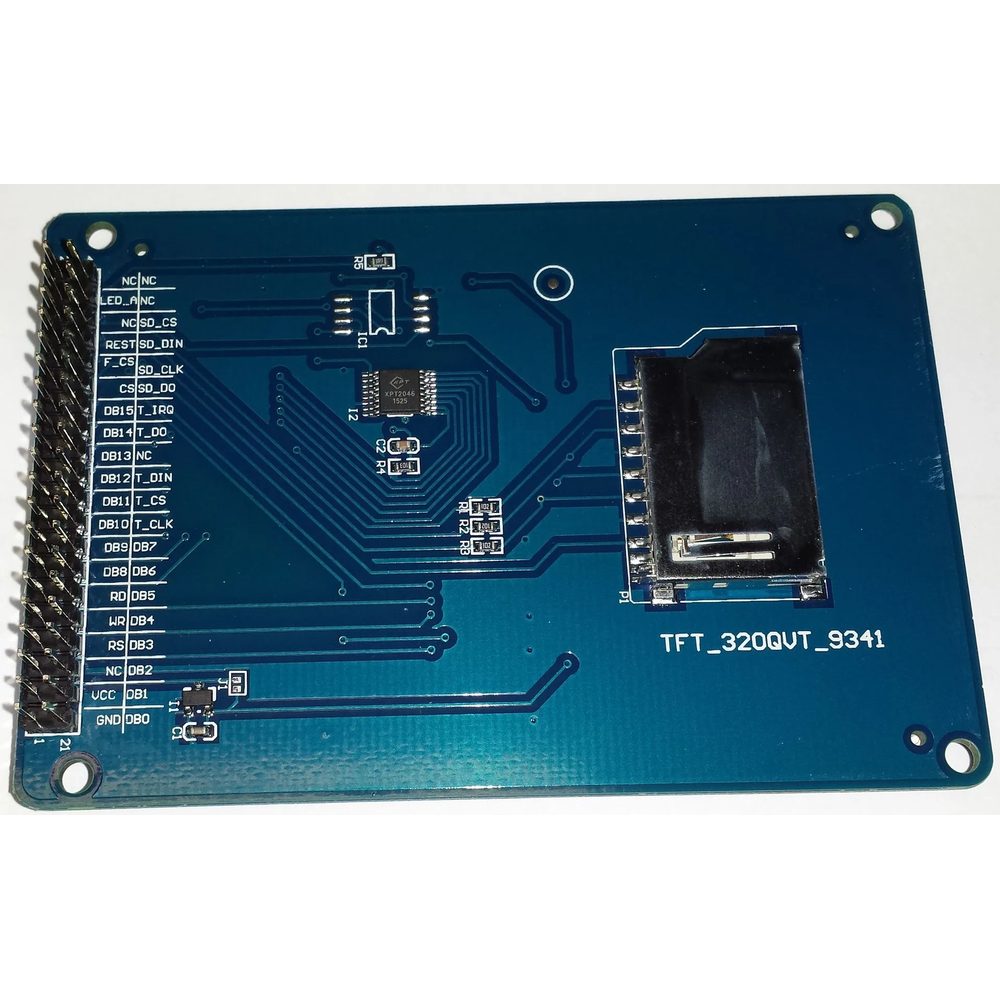

A 3.2-inch 320 x 240 colour TFT with a resistive touch panel on top, on the 40-pin dual-row header that the UTFT and UTouch libraries were written around. That is far more screen than an OLED or a 1.8-inch module - enough for a real menu with tappable buttons, an instrument panel or a small dashboard. It uses a 16-bit parallel bus, so it wants a board with pins to spare (an Arduino Mega is the usual host) and 3.3V logic, so pair it with a level-shifting adapter shield.
Key features
- 3.2 inch colour TFT, 320 x 240 pixels
- Resistive touch panel on a separate SPI controller
- 16-bit parallel bus, 40-pin (2 x 20) header
- Suits Arduino Mega and other pin-rich boards
- 3.3V logic - level-shift from a 5V board
- Driven by the UTFT and UTouch libraries
Details
Specifications
| Panel type | TFT LCD with resistive touch |
|---|---|
| Diagonal | 3.2 inch |
| Resolution | 320 x 240 pixels |
| Colour depth | 65K (16-bit) |
| Interface | 16-bit parallel, 40-pin (2 x 20) header |
| Touch | 4-wire resistive, separate SPI touch controller |
| Logic voltage | 3.3V |
| Libraries | UTFT (ITDB32S) and UTouch |
