| Price | $9 |
|---|---|
| Category | Screens |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

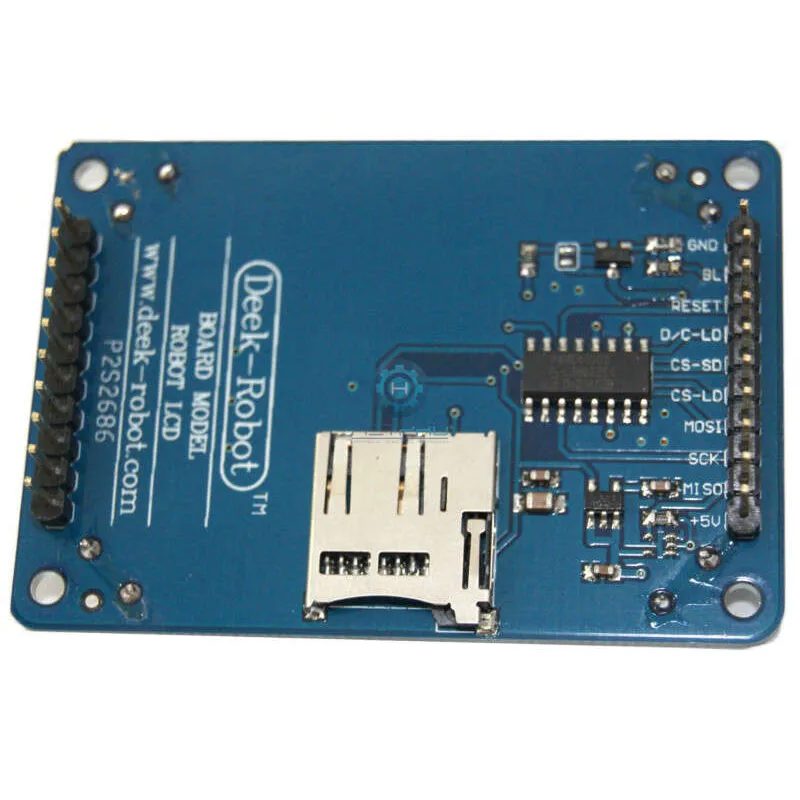

A clone of Arduino's own LCD screen: a 1.77-inch colour TFT on an ST7735 controller, 160 x 128 pixels, with a microSD slot on the back so images and icons can live on a card instead of in flash. Its two header strips are laid out to drop straight onto the Arduino Esplora and the Arduino Robot; on any other board it behaves as an ordinary SPI display and the official Arduino TFT library (or Adafruit's ST7735 plus GFX) drives it. The panel itself is a 3.3V part.
Key features
- 1.77 inch colour TFT, 160 x 128 pixels
- ST7735 controller over SPI
- microSD slot for bitmaps and icons
- Headers laid out for Arduino Esplora and Arduino Robot
- Driven by the official Arduino TFT library
- 3.3V panel - level-shift from a 5V board
Details
Specifications
| Panel type | TFT LCD |
|---|---|
| Controller | ST7735 |
| Resolution | 160 x 128 pixels |
| Colour depth | 65K (16-bit) |
| Diagonal | 1.77 inch |
| Interface | SPI |
| Storage | microSD card slot |
| Logic voltage | 3.3V |
| Designed for | Arduino Esplora, Arduino Robot |
| Library | Arduino TFT (ST7735-based) |
