| Price | $3 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

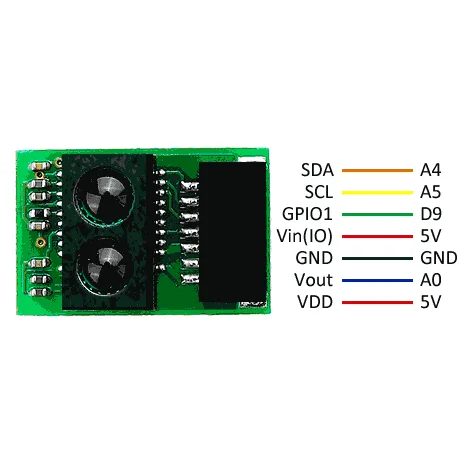

Sharp's smallest rangefinder: a CMOS imager and an infrared LED that triangulate distance from 4 to 50 cm and hand back a number over I2C, so there is no analog curve to linearise and no ultrasonic cone to worry about. The whole sensor is 16.7 x 11 mm, works from as little as 2.7V, draws around 26 mA while ranging and produces a new reading roughly every 40 ms. It ships with the fine-pitch connector cable fitted, which is the fiddly part of using one.
Key features
- Measures 4 to 50 cm
- Digital I2C output, up to 400 kHz, plus an analog output
- Only 16.7 x 11.0 x 5.2 mm
- About 26 mA average while ranging
- New reading roughly every 40 ms
- Fine-pitch connector cable included
Details
Specifications
| Model | GP2Y0E03 (Sharp) |
|---|---|
| Measuring range | 4-50 cm |
| Interface | I2C (max 400 kHz) plus analog output |
| Operating voltage | From 2.7V |
| Supply current | About 26 mA average |
| Update rate | About 40 ms per measurement |
| Dimensions | 16.7 x 11.0 x 5.2 mm |
