| Price | $5 |
|---|---|
| Category | Microcontrollers, Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

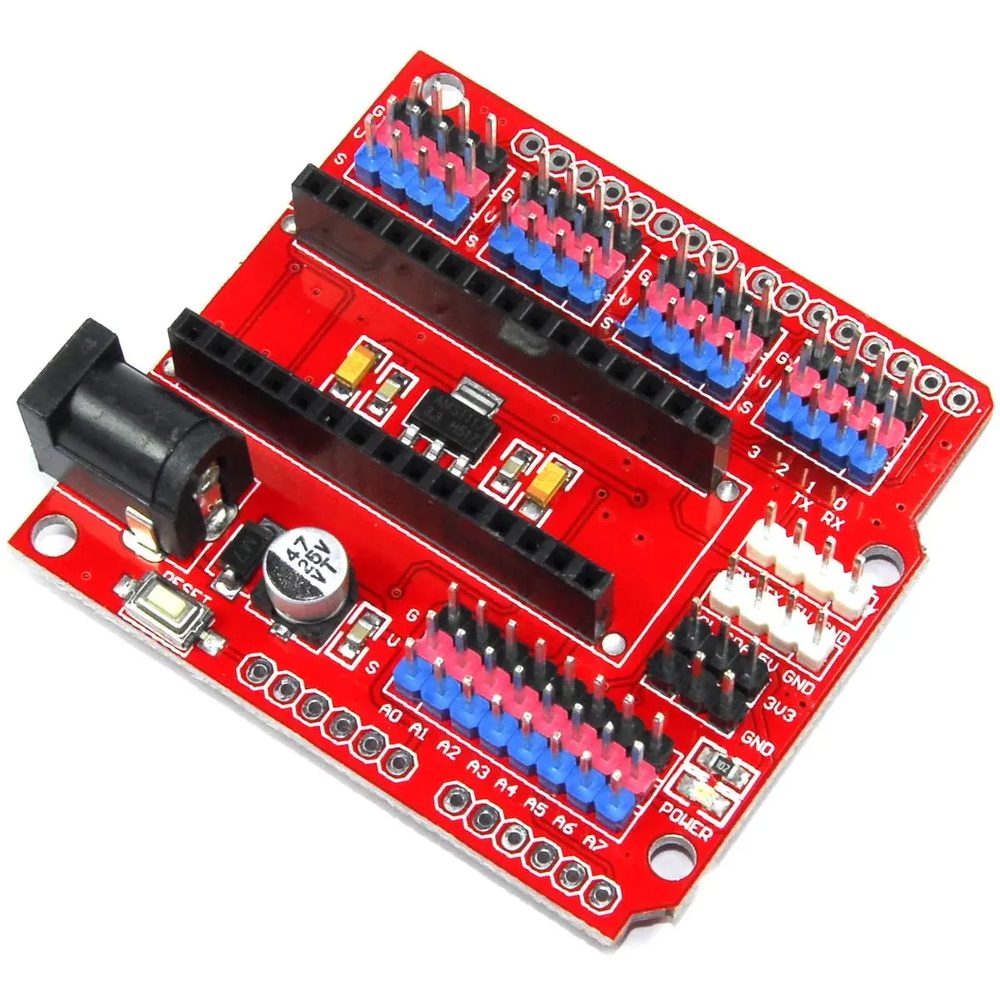

An expansion board that turns an Arduino Nano into a solderless hub for sensors and servos. Every I/O pin is repeated as a 3-pin signal / power / ground header, so a servo, an ultrasonic module or a temperature sensor plugs straight on with its own lead instead of three jumper wires to a breadboard. A DC barrel jack feeds the Nano's VIN so the whole stack can run off a wall adapter, and there is a reset button on the shield itself. The Nano is not included.
Key features
- Every Nano I/O repeated as a 3-pin signal / power / ground header
- Digital D2-D13 and analog A0-A7 all broken out
- DC barrel jack for external power - feeds the Nano's VIN
- Reset button and mounting holes on the shield
- Servos and 3-wire sensor modules plug in directly
- Arduino Nano is not included
Details
Specifications
| For | Arduino Nano (not included) |
|---|---|
| Connectors | 3-pin headers (signal / power / ground) per I/O pin |
| Pins broken out | D2-D13 and A0-A7, plus AREF and power rails |
| Power input | DC barrel jack, feeding the Nano's VIN (keep to 7-12V) |
| Reset | Button on the shield |
| Logic voltage | 5V (set by the Nano) |
