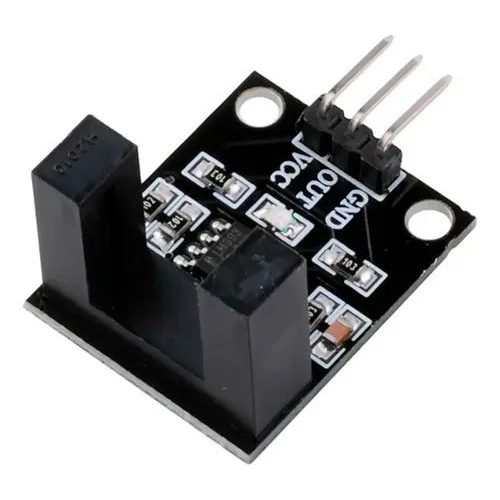

A slot-type photo interrupter on a carrier board: an infrared LED faces a phototransistor across a 10 mm gap, and an LM393 comparator squares the result into a clean high/low you can wire straight to a GPIO. Fit it over a slotted disc on a wheel or shaft and count pulses to get speed and distance. It runs on 3.3V or 5V at about 15 mA, with an indicator LED that lights while the slot is clear.
Key features
- 10 mm wide slot, 12 mm deep
- LM393-conditioned clean digital output
- Runs on 3.3-5V at about 15 mA
- Three pins: VCC, GND, OUT
- Indicator LED lights when the slot is clear
- Single channel - counts pulses, not direction
Details
Specifications
| Model | H2010 |
|---|---|
| Type | Slot photo interrupter (opto counter) module |
| Slot | 10 mm wide, 12 mm deep |
| Operating voltage | 3.3-5V DC |
| Operating current | ~15 mA |
| Output | Digital high/low, LM393 comparator |
| Pins | 3 (VCC, GND, OUT) |
| Indicator | LED on when the slot is clear |
| PCB size | 27 x 20 x 17 mm |
