| Price | $1 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

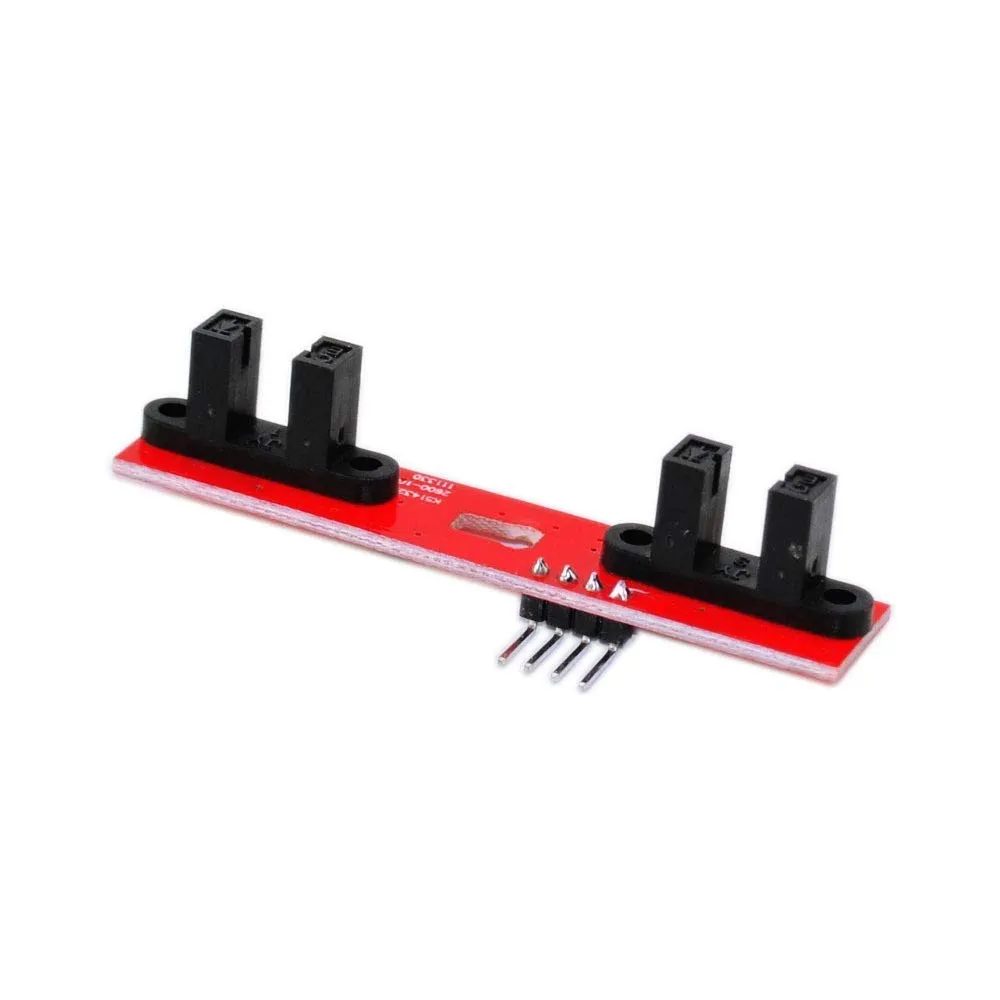

One long board carrying two slotted infrared gates, one for each wheel of a 2WD chassis. A notched encoder disc on the axle passes through the slot and each gate puts out a pulse train the microcontroller counts, so you know how fast and how far each side has turned. Runs on 4.5-5.5V and gives two independent digital channels - which is what lets a differential-drive robot hold a straight line and turn by a measured amount instead of by guesswork.
Key features
- Two independent slot gates on one board
- One channel per wheel for 2WD odometry
- 4.5 - 5.5V DC supply
- Digital pulse output, counted on an interrupt pin
- Needs a slotted encoder disc on the axle
- For straight-line driving and measured turns
Details
Specifications
| Model | F514321 (PCB marked K51432) |
|---|---|
| Type | Slot-type infrared photo-interrupter, 2 off |
| Channels | 2 (A and B) |
| Operating voltage | 4.5 - 5.5V DC |
| Output | Digital pulse, one line per channel |
| Emitter current | under 20 mA |
| Connections | 4-pin header |
