| Price | $3 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

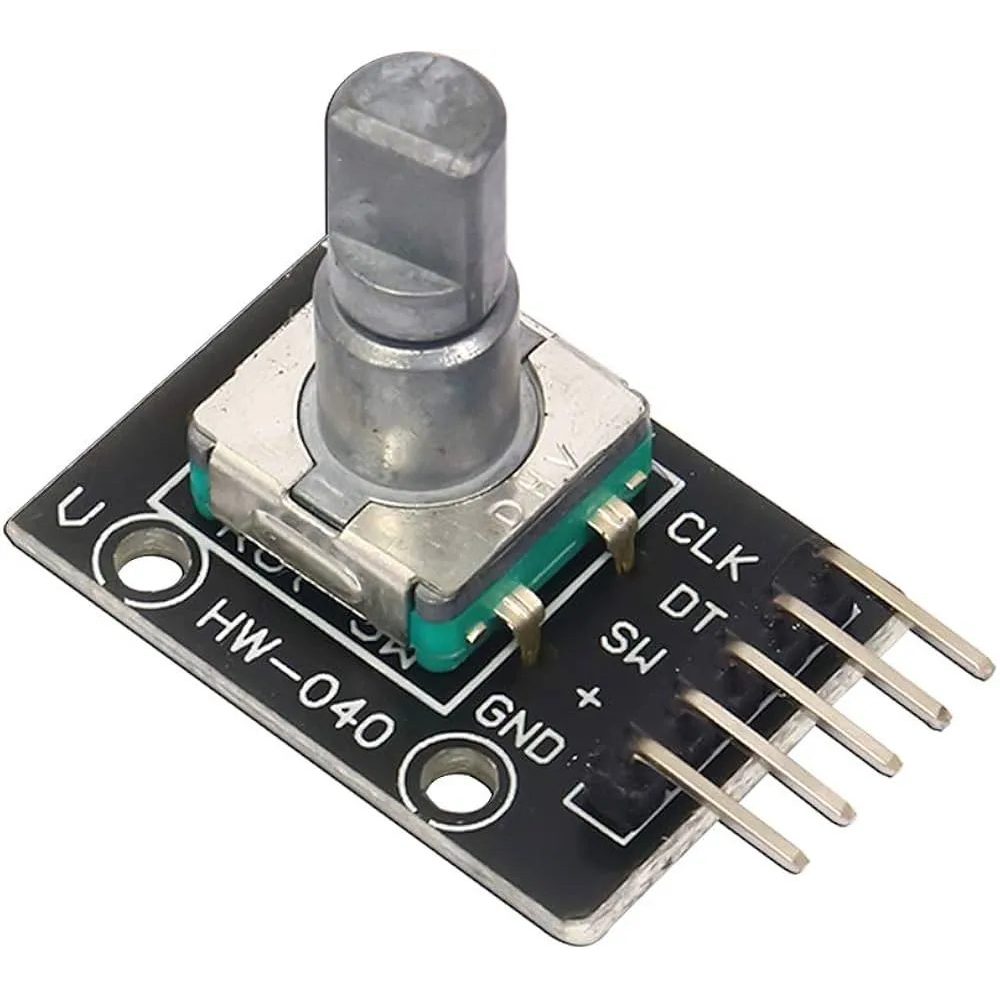

An incremental rotary encoder on a breakout: a knob that turns forever in either direction, clicking through 20 detents per revolution and putting out quadrature pulses on CLK and DT so your code can tell which way it went. Because it counts steps rather than reporting a position, one knob can scroll a menu, adjust a value or act as a jog wheel without ever hitting an end stop - and pressing it in closes a momentary switch on SW. The flatted shaft takes a standard knob cap.
Key features
- 20 detents and 20 pulses per full turn
- Quadrature CLK and DT outputs give direction
- Push-to-click switch on the SW pin
- Turns endlessly - no end stops like a potentiometer
- Five pins: CLK, DT, SW, + and GND
- Flatted D-shaft takes a standard knob cap
Details
Specifications
| Model | KY-040 / HW-040 |
|---|---|
| Type | Incremental rotary encoder with push switch |
| Resolution | 20 pulses per revolution, 20 detents |
| Output | Quadrature (CLK / DT) plus switch (SW) |
| Operating voltage | 5V (works at 3.3V) |
| Pins | CLK, DT, SW, +, GND |
| Output shaft | 6 mm flatted (D) shaft |
