| Price | $10 |
|---|---|
| Category | Cameras, Raspberry Pi, Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

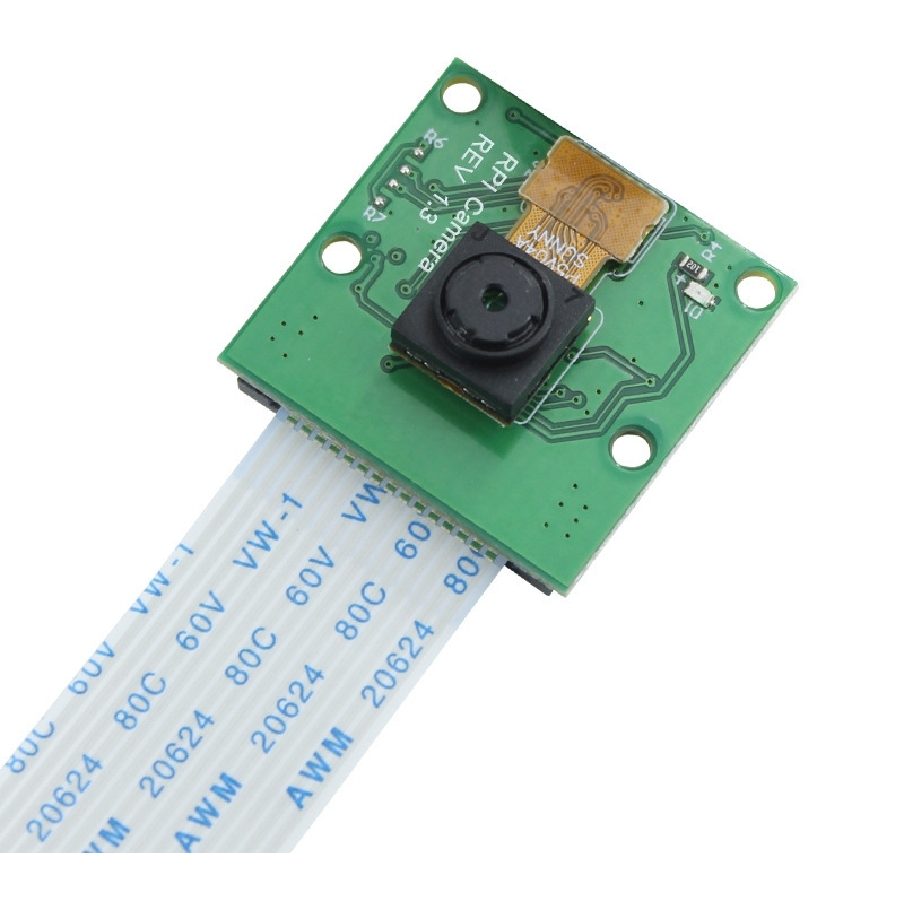

The original-style Raspberry Pi camera board: a 5 MP OmniVision OV5647 sensor on a 25 x 24 mm board that plugs into the Pi's CSI ribbon port, leaving USB and the GPIO free. It takes 2592 x 1944 stills and 1080p30, 720p60 or 640x480p90 video through a fixed-focus f/2.9 lens covering 53.5 degrees horizontally, sharp from about a metre out. At 3 g it is light enough for a drone or a robot arm, and it is the standard starting point for time-lapse rigs, doorbell cameras and OpenCV projects.
Key features
- OmniVision OV5647, 5 MP (2592 x 1944 stills)
- 1080p30, 720p60 and 640 x 480p90 video
- 53.5 x 41.4 degree field of view, f/2.9
- Fixed focus, about 1 m to infinity
- 15-way CSI ribbon - not USB
- Pi Zero and Pi 5 need a 22-pin mini adapter cable
Details
Specifications
| Sensor | OmniVision OV5647 |
|---|---|
| Still resolution | 5 MP (2592 x 1944 pixels) |
| Video modes | 1080p30, 720p60, 640 x 480p90 |
| Sensor image area | 3.76 x 2.74 mm (1/4 inch optical) |
| Pixel size | 1.4 x 1.4 um |
| Focal length | 3.60 mm |
| Focal ratio | f/2.9 |
| Field of view | 53.50 deg horizontal, 41.41 deg vertical |
| Focus | Fixed, approx. 1 m to infinity |
| Interface | 15-way MIPI CSI-2 ribbon |
| Dimensions | 25 x 24 x 9 mm |
| Weight | 3 g |
