| Price | $1.50 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

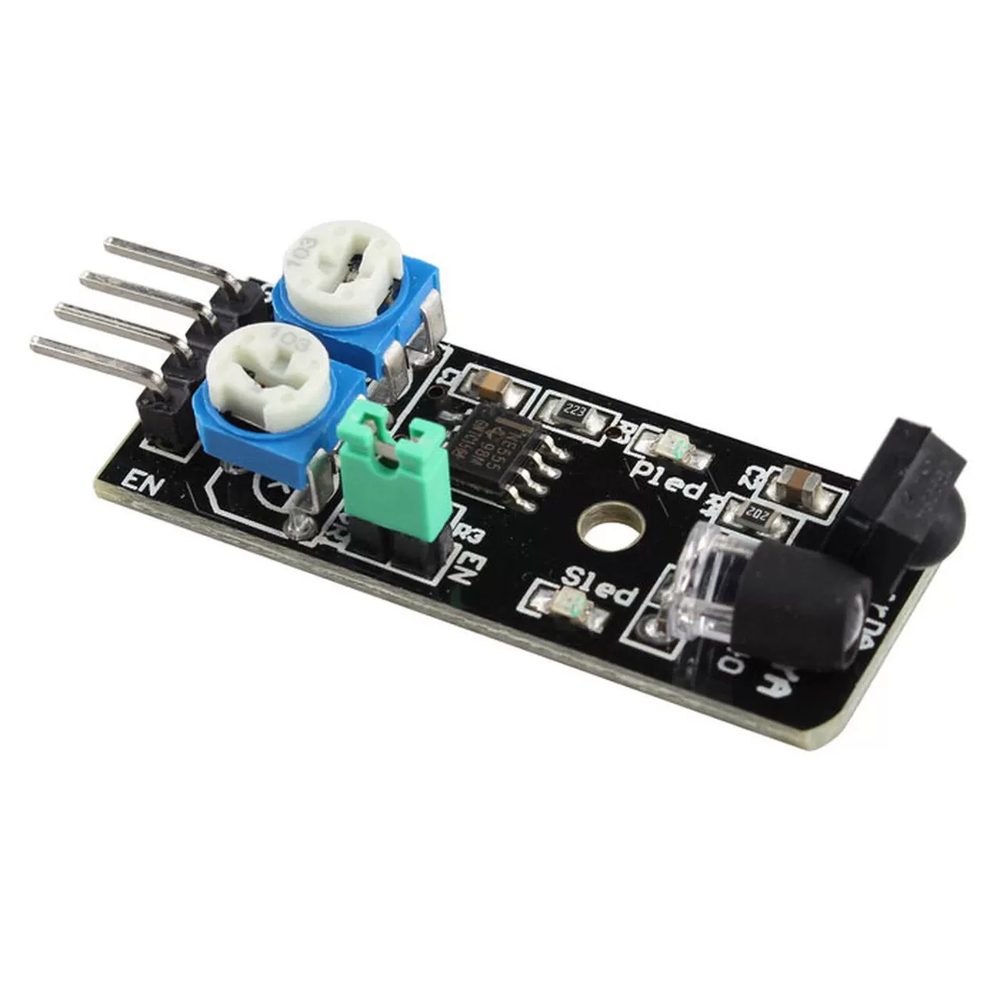

The cheap, dependable way to give a robot a sense of what is in front of it. An NE555 pulses the infrared LED at a carrier frequency and a matched receiver looks for that pulse coming back, so it shrugs off room lighting far better than a plain photodiode pair. Detection runs from about 2 to 30 cm, set on the trim pot, and OUT simply goes LOW when something is seen - a digital yes/no, not a distance reading.
Key features
- Modulated IR carrier - much less fooled by ambient light
- 2 to 30 cm, adjustable with the trim pot
- About a 35 degree detection cone
- OUT goes LOW on detection - straight to any digital pin
- Enable jumper and indicator LEDs on board
- Yes/no only - it does not measure distance
Details
Specifications
| Type | Active infrared reflective obstacle sensor (breakout module) |
|---|---|
| Chipset | NE555 carrier oscillator + modulated IR receiver |
| Detection range | ~2 to 30 cm, adjustable |
| Detection angle | ~35 degrees |
| Output | Digital only - LOW when an obstacle is detected |
| Adjustment | Two trim pots (detection distance, carrier trim) |
| Operating voltage | 3.3 to 5V DC |
| Pins | VCC, GND, OUT, EN (enable) |
| Indicators | Power LED + signal LED |
