| Price | $2 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

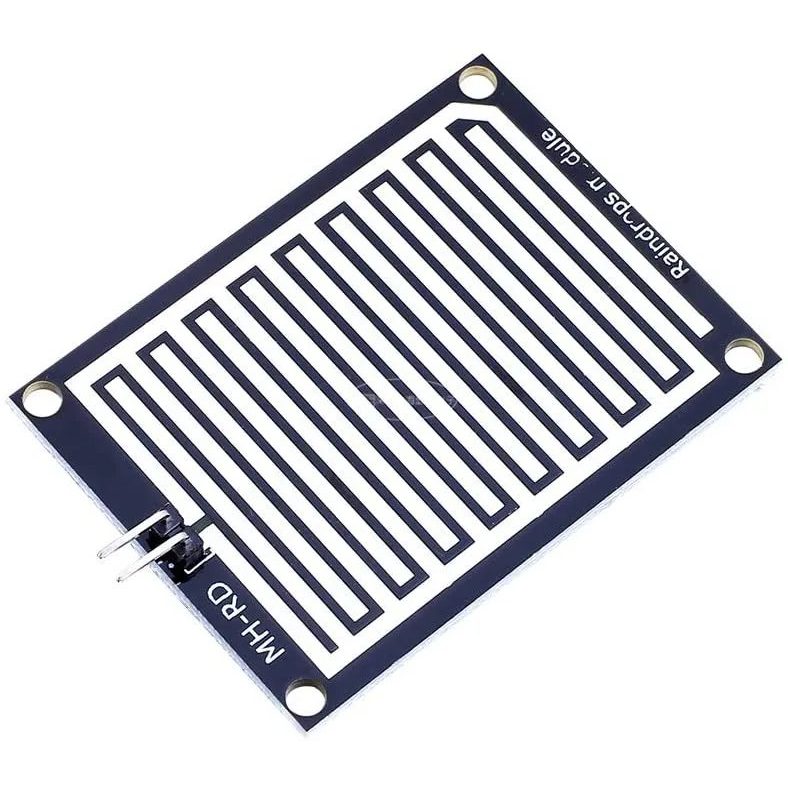

Two boards working together: a plated comb of interlocking traces that you mount outside, and a small comparator board that reads it. Water bridging the comb drops its resistance, so the analog pin falls as the plate wets and the digital pin flips once past the threshold you set on the trim pot. It runs from 3.3-5V and draws about 8 mA. Good for closing a window, retracting the washing or logging when it rained.
Key features
- Plated collector plate plus LM393 comparator board
- Analog output falls as the plate gets wetter
- Digital output flips at a trim-pot threshold
- 3.3-5V supply, about 8 mA with both LEDs lit
- Four pins: VCC, GND, AO, DO
- Mount the plate at an angle so it drains
Details
Specifications
| Type | Raindrop / water presence sensor |
|---|---|
| Boards | Collector plate + comparator board |
| Comparator | LM393 |
| Operating voltage | 3.3-5V DC |
| Outputs | Analog (AO) + digital threshold (DO) |
| Threshold | On-board trim pot |
| Current | ~8 mA with both LEDs lit |
| Pins | VCC, GND, DO, AO |
