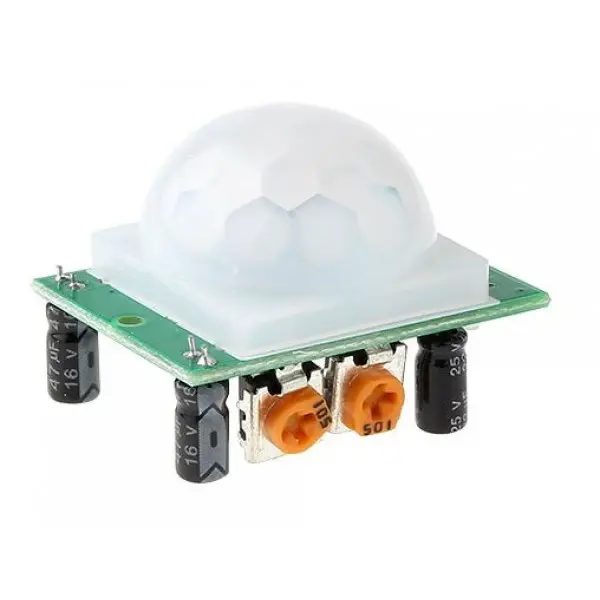

The sensor behind every security light. A pyroelectric element under the white Fresnel dome watches for a moving warm body and pulls its output high when it finds one - no code needed, just read a pin. The two orange pots set sensitivity, which moves the range over roughly 3 to 7 metres, and how long the output stays high, from about a second to three minutes. The L/H jumper decides whether continued movement re-triggers the timer. It idles under 2 mA, so battery alarms are practical.
Key features
- Detects moving people and animals by body heat
- 3 - 7 m range over a cone of about 120 degrees
- Delay adjustable from about 1 s to 3 min
- L/H jumper for single or repeat triggering
- 4.5 - 20V supply, under 2 mA idle
- 3.3V digital output - reads HIGH on a 5V board
Details
Specifications
| Model | HC-SR501 |
|---|---|
| Sensor | Pyroelectric IR element with Fresnel lens |
| Operating voltage | 4.5 - 20V DC, 5V typical |
| Quiescent current | under 2 mA |
| Output | Digital, 3.3V high / 0V low |
| Detection range | 3 - 7 m, adjustable |
| Detection angle | about 120 degrees |
| Delay time | about 1 s to 3 min, adjustable |
| Block time | about 2 s |
| Trigger mode | L single / H repeat, jumper selected |
| Adjustments | 2 potentiometers - sensitivity and delay |
