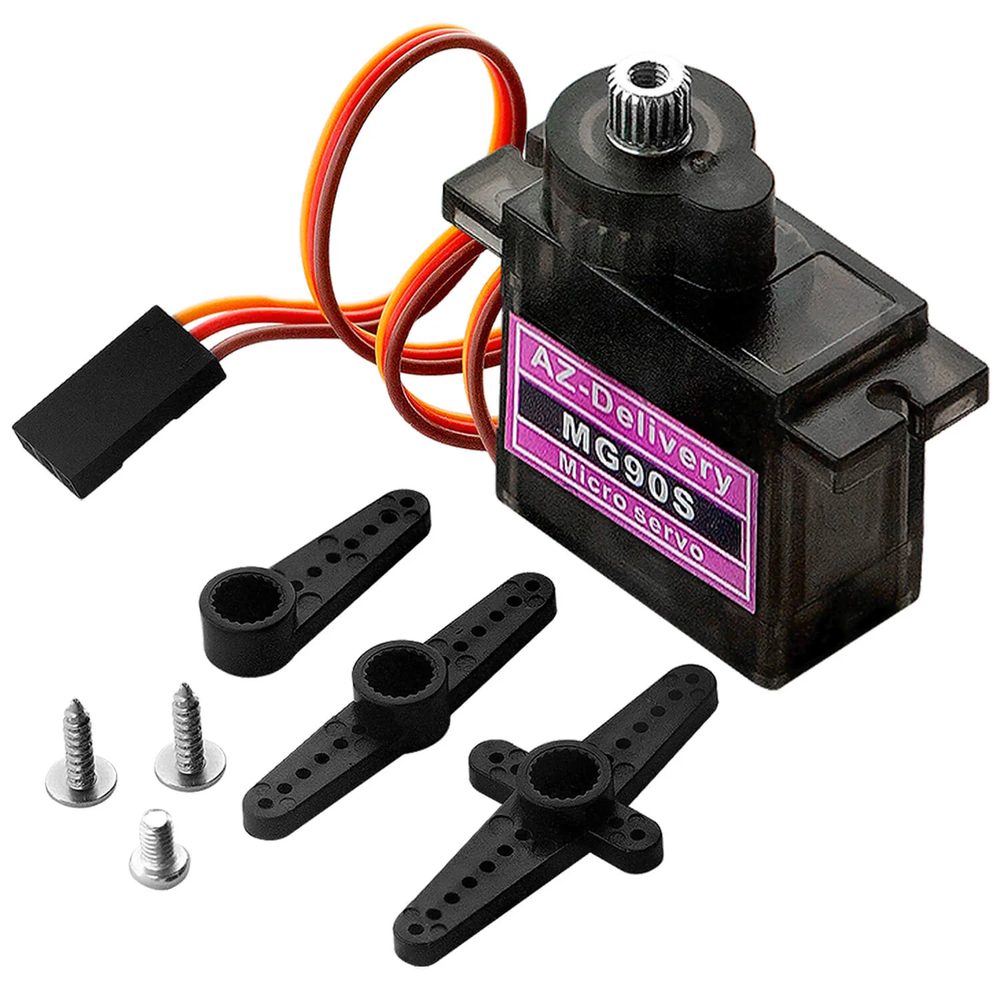

MG90 Servo motor (180 degrees)
Earn $0.20 back in store credit when you order this online. How it works
| Price | $4 |
|---|---|
| Category | Actuators & Drivers |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |
Metal-geared member of the 9 g micro servo family: the MG90S has the same footprint as an SG90 but a metal gear train and a bearing on the output, so it survives the knocks that strip a plastic-geared servo. It gives 1.8 kg per cm at 4.8V rising to 2.2 kg per cm at 6V, and is slightly quicker at 0.1 sec per 60 degrees. Positional, roughly 180 degrees of travel - the one to pick for robot joints and grippers that get worked hard.
Key features
- Metal gear train with one output bearing
- Stall torque 1.8 kg·cm at 4.8V, 2.2 kg·cm at 6V
- 0.1 sec per 60 degrees at 4.8V, 0.08 sec at 6V
- Positional: about 180 degrees, 90 each way
- 13.4 g, 22.5 x 12 x 35.5 mm
- Comes with 3 horns and screws
Details
Specifications
| Model | MG90S |
|---|---|
| Type | Positional (angle) micro servo |
| Operating voltage | 4.8-6V DC |
| Stall torque | 1.8 kg·cm at 4.8V; 2.2 kg·cm at 6V |
| Speed | 0.1 sec/60 degrees at 4.8V; 0.08 sec at 6V |
| Rotation | ~180 degrees (90 each way) |
| Dead band | 5 µs |
| Gears | Metal, one bearing |
| Weight | 13.4 g |
| Dimensions | 22.5 x 12 x 35.5 mm |
| Connector | 3-wire JR |
