| Price | $2 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

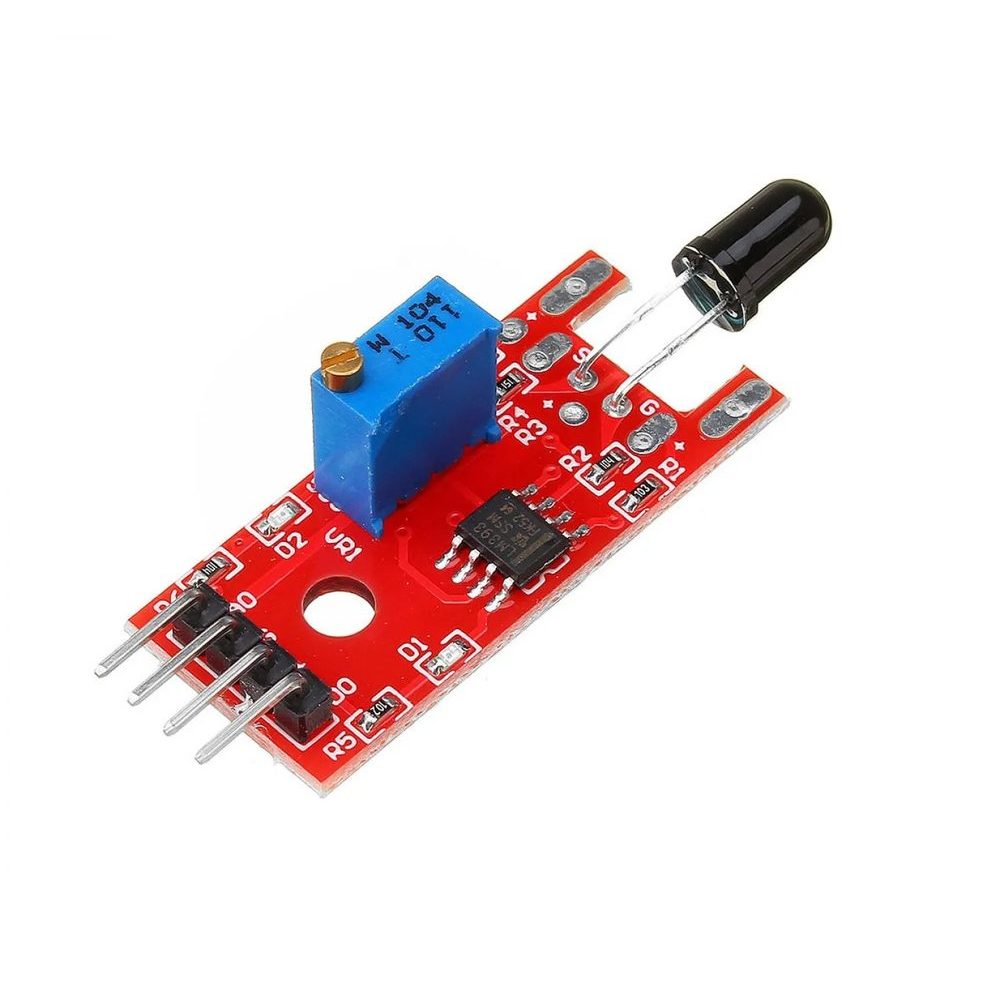

A ready-wired flame detector: an infrared photodiode that looks for the 760-1100 nm light a flame gives off, an LM393 comparator and a trim pot. You get both outputs - A0 for the raw infrared intensity, so you can follow a flame or judge how big it is, and D0 for a clean alarm trigger once the level crosses the threshold you dial in. Detects a small flame at around 60 to 100 cm over a 60 degree cone, runs on 3.3V or 5V and draws under 15 mA.
Key features
- Detects a flame by its 760-1100 nm infrared
- Analog A0 plus threshold-triggered digital D0
- 60 degree detection cone
- ~60-100 cm on a small flame, further on a big one
- Trim pot sets the digital threshold; power + trigger LEDs
- 3.3-5.5V, under 15 mA
Details
Specifications
| Model | KY-026 (also sold as HW-491) |
|---|---|
| Type | Infrared flame sensor breakout module |
| Chipset | IR photodiode + LM393 comparator |
| Detection wavelength | 760 nm to 1100 nm |
| Detection angle | 60 degrees |
| Detection range | ~60-100 cm for a small flame |
| Output | Analog (A0) + digital threshold (D0) |
| Adjustment | Onboard potentiometer sets the D0 threshold |
| Operating voltage | 3.3 to 5.5V DC |
| Current | up to ~15 mA |
| Dimensions | ~36 x 15 mm |
