| Price | $2 |
|---|---|
| Category | Sensors |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

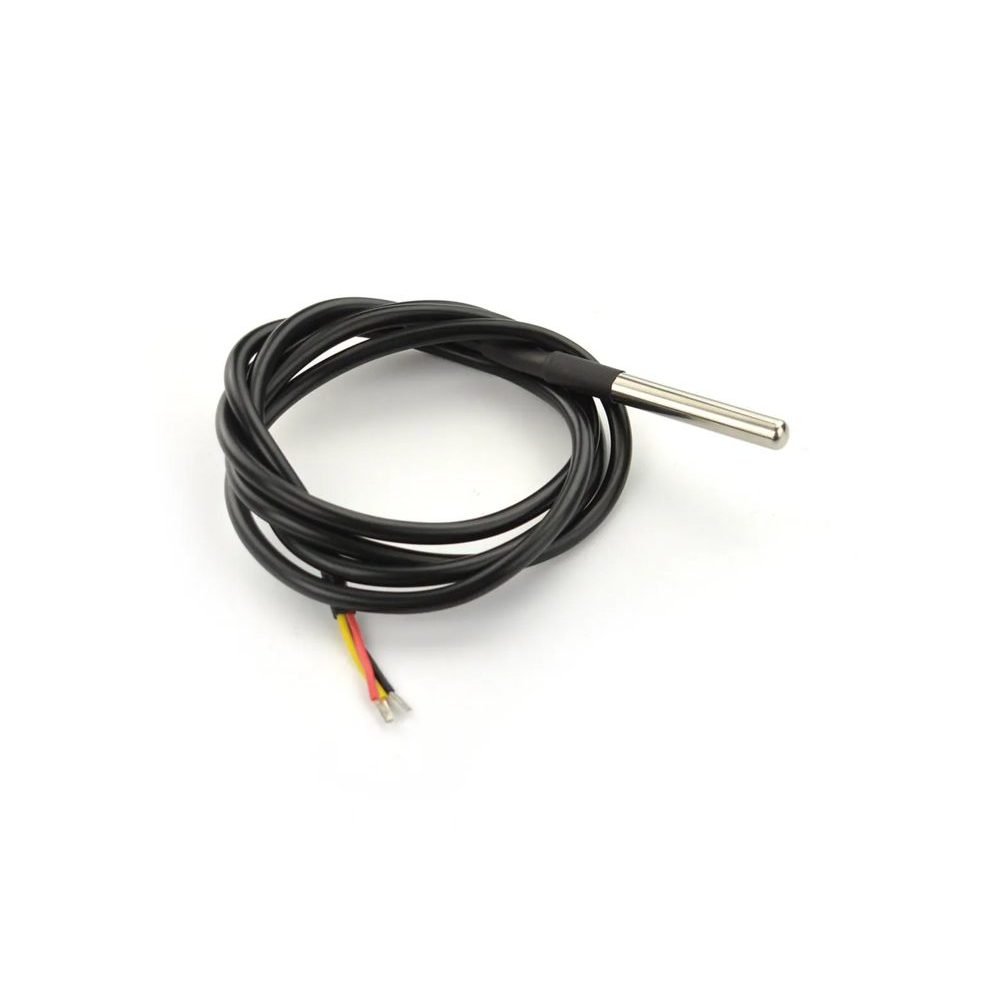

A DS18B20 sealed inside a stainless steel probe on a PVC lead, so it can go straight into water, soil, a fermenter or an outdoor housing. The conversion happens on the chip, so there is no analog wiring and nothing to calibrate, and it reports over 1-Wire with a unique 64-bit serial number per sensor - which is how a dozen probes can share a single data pin. Accurate to plus or minus 0.5 degrees C across the -10 to +85 C band.
Key features
- -55 to +125 C range, +/-0.5 C from -10 to +85 C
- 9 to 12-bit selectable resolution
- 1-Wire bus - needs a 4.7k pull-up to VCC
- Unique 64-bit ID, many probes on one pin
- Stainless steel probe, 6 mm dia x 30 mm
- 3.0 - 5.5V, or parasite power off the data line
Details
Specifications
| Model | DS18B20, waterproof probe |
|---|---|
| Measuring range | -55 to +125 C |
| Accuracy | +/-0.5 C from -10 to +85 C |
| Resolution | 9 to 12-bit, selectable |
| Conversion time | up to 750 ms at 12-bit |
| Interface | 1-Wire (4.7k pull-up required) |
| Supply voltage | 3.0 - 5.5V DC, parasite power supported |
| Probe | Stainless steel, 6 mm dia x 30 mm |
| Cable | PVC jacketed - keep the cable itself below 100 C |
