Arduino Esplora
| Price | $45 |
|---|---|
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

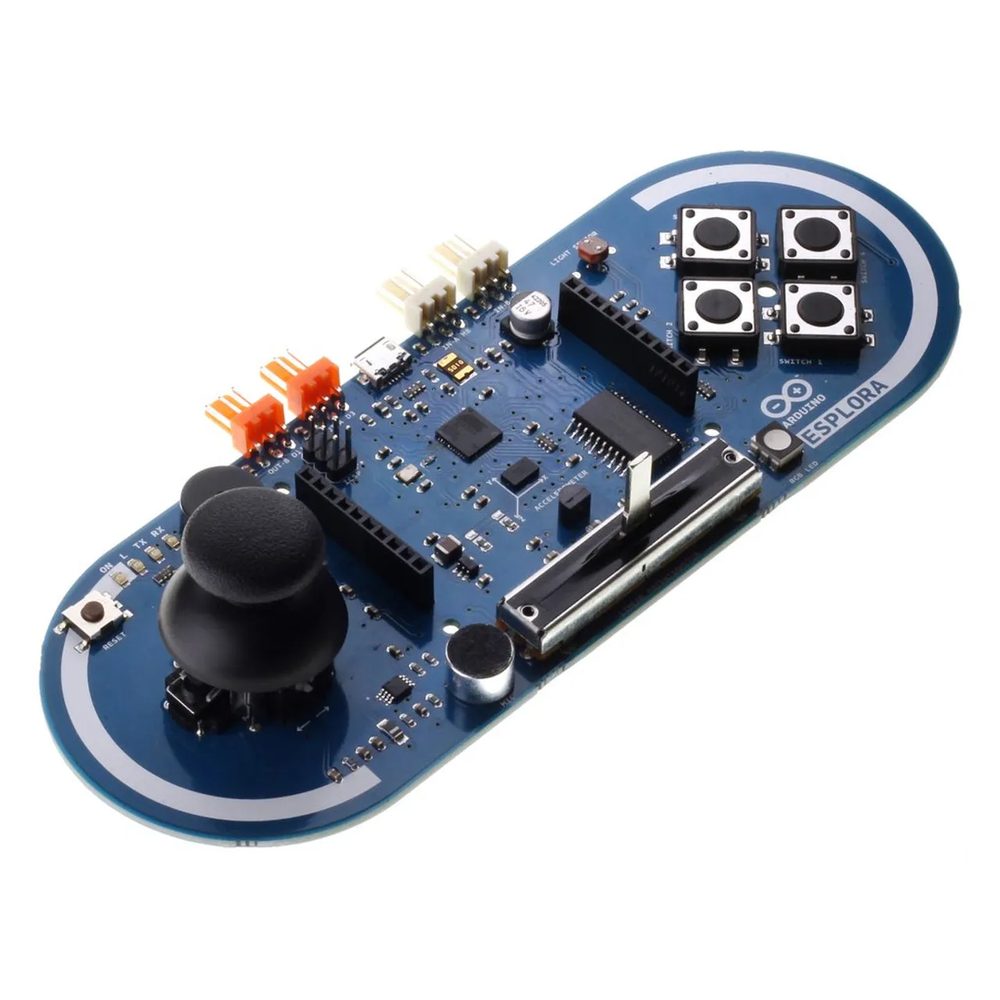

Shaped like a games controller, the Esplora is an Arduino with its inputs and sensors already soldered on: a 2-axis analogue joystick with a centre button, four pushbuttons, a linear slider, plus light, temperature, microphone and 3-axis accelerometer sensors, a buzzer and an RGB LED. It runs an ATmega32U4 at 16 MHz with native USB, so it can pretend to be a keyboard or mouse and drive a PC directly. Nothing to wire - plug it in and start coding.
Key features
- ATmega32U4 at 16 MHz with native USB (acts as keyboard/mouse)
- Joystick with centre button, 4 pushbuttons, linear slider
- Light, temperature, microphone and 3-axis accelerometer on board
- RGB LED and buzzer for output
- 2 TinkerKit inputs, 2 outputs and a TFT LCD connector
- 165 x 61 mm - no breadboard or jumper wires needed
Details
Specifications
| Model | Arduino Esplora |
|---|---|
| Microcontroller | ATmega32U4 |
| Clock speed | 16 MHz |
| Flash memory | 32 KB |
| SRAM | 2.5 KB |
| EEPROM | 1 KB |
| Operating voltage | 5V |
| USB connector | Micro-USB (native USB HID) |
| On-board inputs | 2-axis joystick + button, 4 pushbuttons, linear slider |
| On-board sensors | Light, temperature, microphone, 3-axis accelerometer |
| On-board outputs | RGB LED, buzzer |
| Expansion | 2 TinkerKit inputs, 2 TinkerKit outputs, TFT LCD connector |
| Dimensions | 165.1 x 61.0 mm |
