Voltage Booster

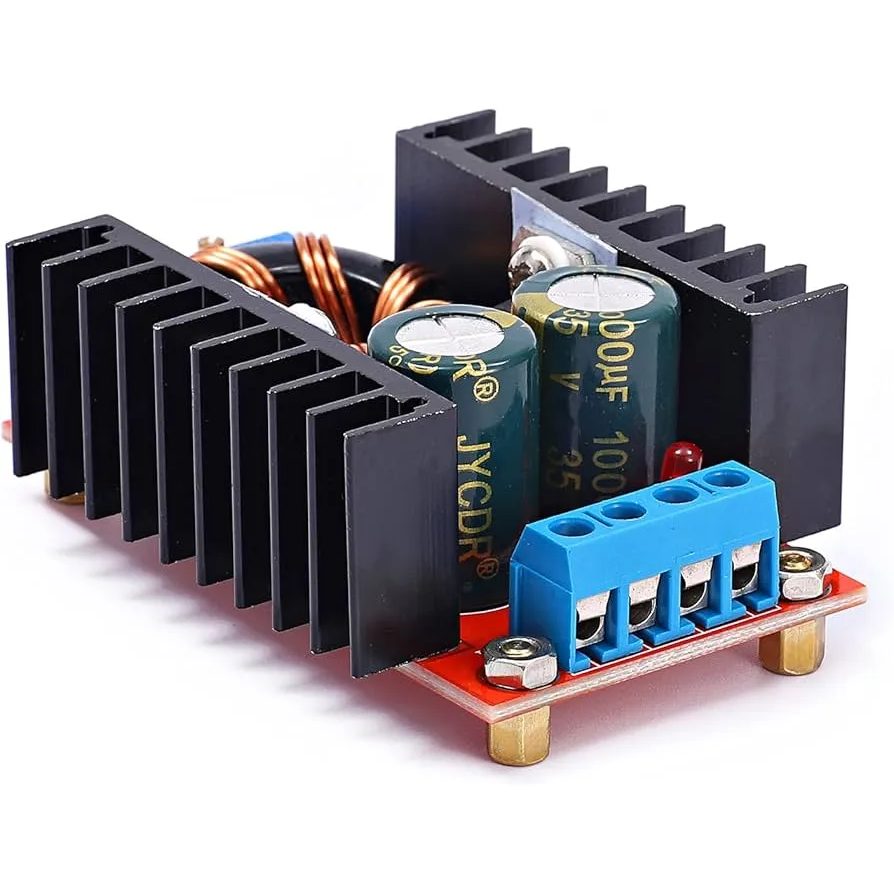

A 150W step-up module on a red board with twin heatsinks and a big toroidal inductor. It lifts 10-32V up to an adjustable 12-35V at up to 6A, with efficiency around 94% converting 16V to 19V - which is exactly the job people buy it for, running a 19V laptop from a 12V car or solar system. Rated 100W on natural convection and 150W only with a fan on it, and there is no reverse-polarity protection, so get the input wires the right way round.
Key features
- Boost only - output must be higher than the input
- 10-32V in, 12-35V out, adjustable on the trimmer
- Up to 6A output; 100W convection, 150W with airflow
- ~94% efficient at 16V in / 19V out
- Output ripple 2% max
- No reverse-polarity protection - fit a series diode
Added. View cart
| Price | $8 |
|---|---|
| Category | Power Supplies |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |
Details
Specifications
| Type | Step-up (boost), non-isolated switching |
|---|---|
| Input voltage | 10-32V DC |
| Output voltage | 12-35V DC (adjustable) |
| Max current | 6A |
| Max power | 100W natural convection, 150W forced air |
| Efficiency | ~94% (16V in, 19V out) |
| Output ripple | 2% max |
| Adjustment | Multiturn trimmer |
| Connections | 4-way screw terminal |
| Operating temperature | -40 to +85 degrees C |
| Dimensions | 65 x 46.5 x 23 mm (heatsinks included) |
