LC37F-177B6 DC motor 3v ~ 6v with Tachometer
Earn $0.30 back in store credit when you order this online. How it works
| Price | $6 |
|---|---|
| Category | Actuators & Drivers |
| Availability | In stock |
| Delivery | Shipped across Lebanon, or collect from the lab |

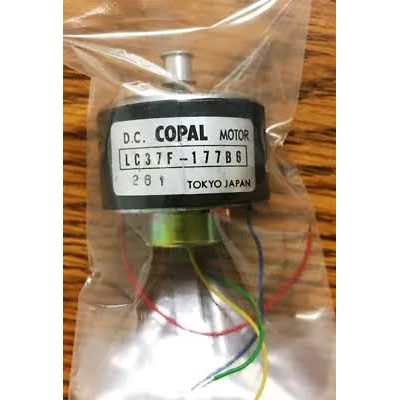

A Japanese-made Nidec Copal motor with a tachogenerator built into the same can, so it hands you a speed signal on its own pair of leads with no encoder disc to align. That is why these ended up in tape decks, plotters and instruments - closed-loop speed control from one part. Supplied as a 3-6V unit, with a colour-coded lead bundle carrying the motor supply and the tacho output separately.
Key features
- Tachogenerator built into the motor can
- Speed feedback without an external encoder
- Colour-coded lead bundle: motor pair plus tacho output
- 3-6V DC operation
- Genuine Nidec Copal, made in Tokyo, Japan
- For closed-loop speed control and precision drives
Details
Specifications
| Model | LC37F-177B6 |
|---|---|
| Manufacturer | Nidec Copal (Tokyo, Japan) |
| Type | Brushed DC motor with integral tachogenerator |
| Operating voltage | 3-6V DC (as supplied) |
| Feedback | Tachogenerator output on separate leads |
| Body size | Round can, Copal LC37 frame (~37 mm class) |
| Termination | Flying leads, colour-coded |
