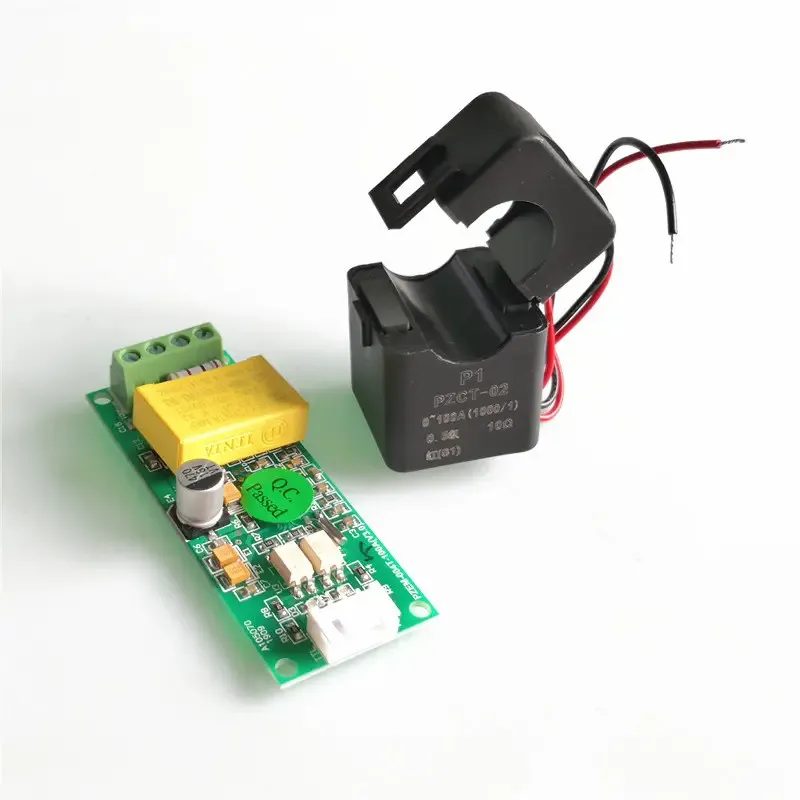

A whole AC energy meter on one small board: volts, amps, watts, kilowatt-hours, frequency and power factor, all read over a serial link by an Arduino, ESP32 or Raspberry Pi. This is the 100A version, so it comes with a split-core clamp that closes around one wire of a circuit that is already running - nothing has to be cut or unwired to measure it. It speaks Modbus-RTU at 9600 baud and keeps its own kWh total, which makes it the usual way to find out what a workshop, a pump or a whole flat really consumes.
Key features
- Measures 80-260V AC and up to 100 A - about 23 kW - to within 0.5%
- Reports frequency and power factor too, not just watts
- Split-core clamp: fits around a live wire without cutting it
- Keeps a running kWh total; reset by command, so no button to knock by accident
- Modbus-RTU over 5V TTL serial at 9600 baud - ready-made Arduino and ESP32 libraries
- Settable over-power alarm, and addresses for several meters on one bus
- It wires into live 220V mains - a job for someone confident working on a mains circuit
Details
Specifications
| Model | PZEM-004T-100A (V3.0 board) |
|---|---|
| Measures | Voltage, current, active power, energy, frequency, power factor |
| Voltage range | 80-260V AC, 0.1V resolution |
| Current range | 0-100 A through the supplied clamp, from 0.02 A |
| Active power | 0-23 kW, 0.1W resolution |
| Energy | 0-9999.99 kWh, 1 Wh resolution, software reset |
| Frequency | 45-65 Hz, 0.1 Hz resolution |
| Power factor | 0.00-1.00 |
| Accuracy | 0.5% (power factor 1%) |
| Current transformer | PZCT-02 split-core clamp, 100 A |
| Interface | TTL serial, optocoupler isolated from the mains side |
| Protocol | Modbus-RTU, 9600 baud, 8 data bits, 1 stop, no parity |
| Serial connections | 5V, RX, TX, GND - all four must be wired, and the 5V comes from your side |
| Addressing | 0x01-0xF7, so several meters share one bus |
| Operating temperature | -20 to +60 C |
